PH485Wx1P
Serial RS232/RS485/RS422 to Wi-Fi Terminal Server/Client
& Modbus ASCII/RTU to Modbus TCP Gateway
Introduction
IP Electronix PH485Wx1P bidirectional communication terminal server/client is a simple solution for connecting serial devices to a Wi-Fi network which results in having 1 RS-232, RS-485 or RS-422 serial port over Wi-Fi network. This converter uses transparent communicate protocol, so it is not required to understand complex Wi-Fi and TCP/IP protocol, and no modification in serial programs is needed. It operates as a Real COM, TCP Server, TCP Client, UDP Server and UDP Client Full-Duplex converter and supports bidirectional connection.
PH485Wx1P also can be used as Modbus ASCII/RTU Gateway
PH485Wx1P is designed for industrial usage and is useful for connecting any device with a serial interface to a computer via Ethernet supported network like LAN, WAN … and can be used in Industrial Automation, Telecommunications, SCADA Systems, DCS Systems …. Protection against Surge, ESD and EMI is implemented in its design and there is 3kV isolation in serial side.
Contact us to buy and know the price of Serial to Ethernet PH485Wx1P converter.
Specifications
- Data Modes: Raw Data, Modbus TCP Gateway, Modbus RTU Gateway;
- Number of Ports: #1 RS-232/485/422 Serial Port, #1 Wi-Fi Antenna;
- Standard: IEEE 802.11a/b/g/n;
- Working Mode: Station, Access Point;
- Network Protocols: ICMP, IP, TCP, UDP, DHCP, Telnet, DNS, ARP, HTTP;
- Serial Standard: Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards;
- RS-232 Signal: TxD, RxD, GND;
- RS-232 Parity: Even, Odd, None, Mark and Space;
- Serial Standard: Meets or Exceeds the Requirements of RS-485/422 Standards;
- RS-485 Signal: Data+, Data-, GND;
- RS-422 Signal: TX+, TX-, RX+, RX-, GND;
- RS-485/422 Parity: Even, Odd, None, Mark and Space;
- Maximum Communication Distance: 2400m (1200m each side);
- Loading: RS-485 and RS-422 Side up to 32 Nodes are supported;
- Wide Range Power Supply: +9V to +48V DC;
- Serial Transmission Speed: Up to 230.4 kbps;

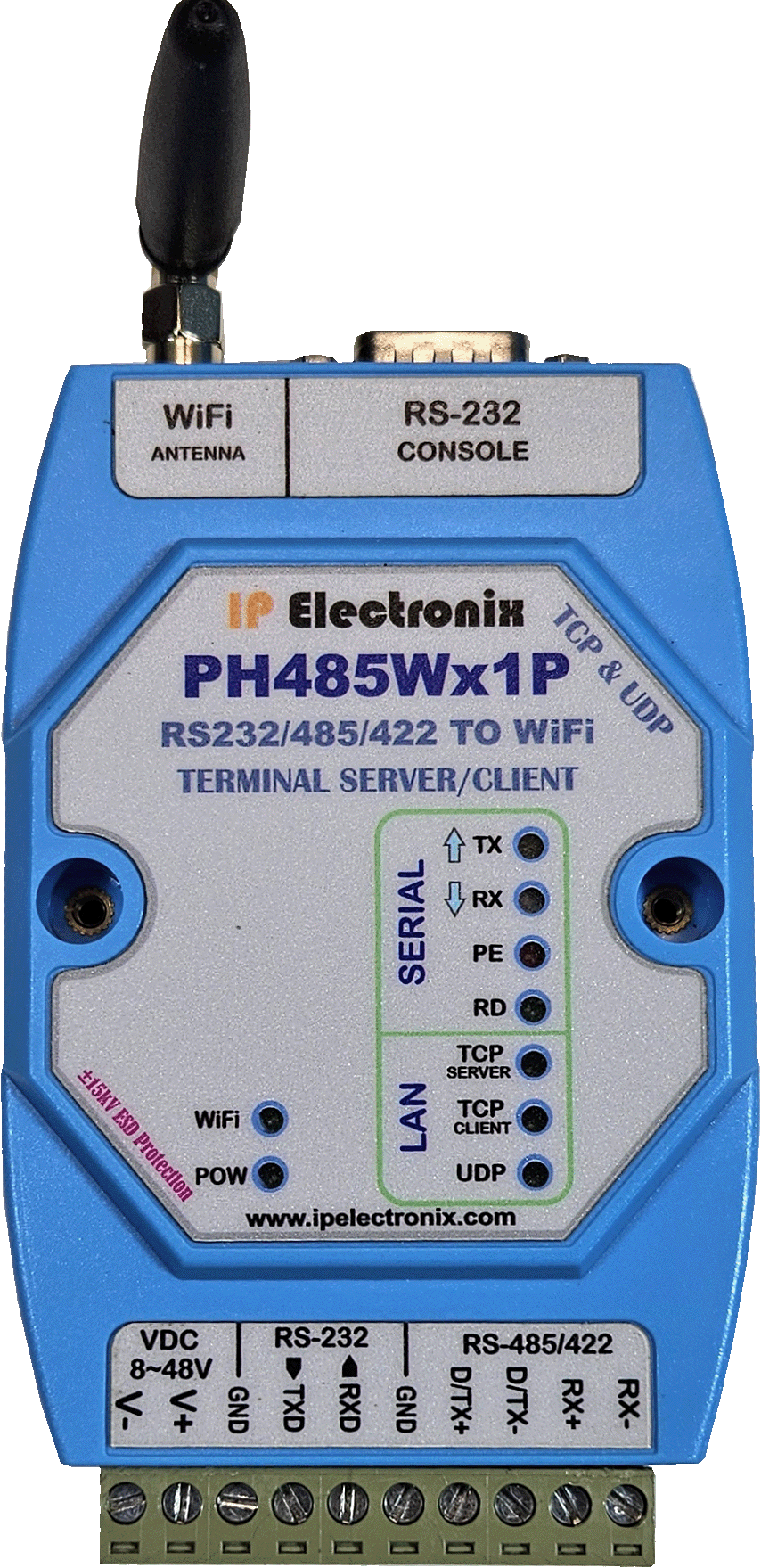

- Power (Green) LED Indicator;
- Transmit (Blue) and Receive (Yellow) LED Indicator;
- Isolation Protection: 3kV Instantaneous, 500V DC Continuous;
- Surge Protection: Embedded 1500W Surge Protection;
- ESD Protection: Exceeds ±15 kV Using Human-Body Model (HBM);
- Dimensions: 26mm x 71.6mm x 122 mm (1.03in x 2.8in x 4.82in);
- Operating Temperature: -10°C to +70°C (+14°F to +158°F);
- 1 Year Guarantee and 5 Years Support.
